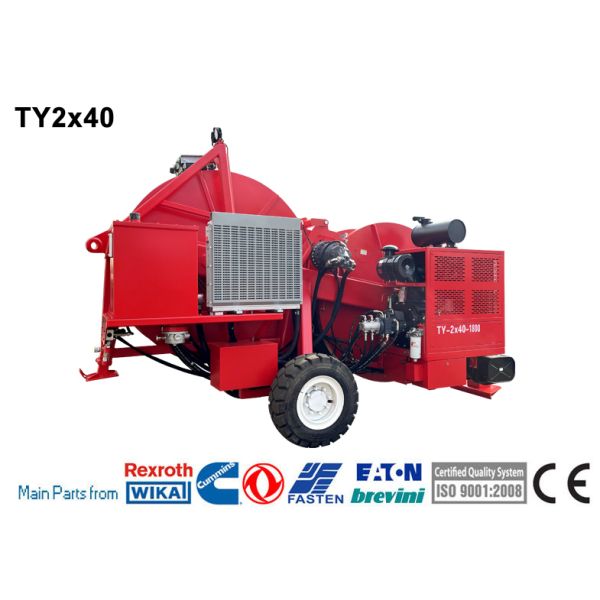

| TY2x40-1800 Hydraulic Tensioner |
- The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
|
- Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
|
| Characteristics |
| Max conductor diameter: 40mm |
| Bull-wheel diameter: 1800mm |
| Total weight: 7790kg |
| Groove number: 2x5 |
| Overall dimension (length*width*height): 4600×2250×2700mm |
| Performance |
| Max continuous tension: 2x40kN |
| Max intermittent tension: 2x45kN |
| Max speed: 5km/h |
| Speed at max tension: 2.5km/h |
| Max reverse pulling speed: 5km/h |
| Max reverse pulling force: 2x35kN |
| Pull at max speed: 2x20kN |
| Main configuration |
| Engine: Cummins |
| Speed reducer: German Rexroth / Italy Bonfiglioli |
| Hydraulic pump: German Rexroth/Dnish Danfoss |
| Main hydraulic valves: USA Sun / Italy ATOS |
| Main motor: German Rexroth/French Leduc |
| Engine |
| Diesel: 77kw(103hp) |
| Cooling system: water |
| Electrical system: 24V |
| Hydraulic Transmission |
| The machine is provided with tension presetting system. |
| The machine can realize step less speed. |
| Additional Devices |
| Trailer for towing at max speed of 15 km/h |
| Lighting system for the trailer |
| 2 hydraulic rope/conductor clamp(extra charge) |
| Digital speed and meter counter |
| Swivel guide rope roller |
| Configuration |
| Digital speed and meter counter |
| Hydraulic dynamometers |
| Hydraulic oil cooling system |
| Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor |
| Hydraulic front stabilizer |
| Grounding connection point |
