Transmission Line Stringing Equipment Hydraulic Cable Line Conductor Tensioner

  • 1
  • 2

Brand Name : HANYU

Model Number : TY2x40-1800

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD57,500-61,000/set

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Type : Hydraulic Cable Line Conductor Tensioner

Max continuous tension : 2x40kN

Max reverse pulling force : 2x35kN

Max conductor diameter : 40mm

Speed at max tension : 2.5km/h

Groove number : 2x5

Contact Now

Transmission Line Stringing Equipment Hydraulic Cable Line Conductor Tensioner

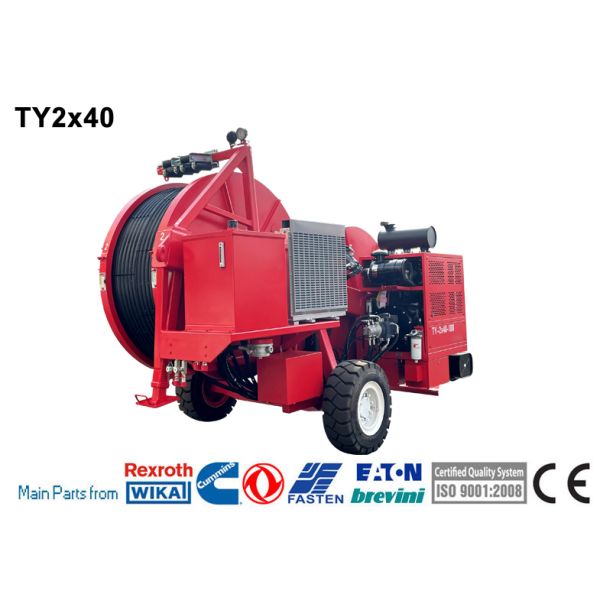

TY2x40-1800 Hydraulic Tensioner

  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance

Max intermittent tension: 2x45kN
Max continuous tension: 2x40kN
Max speed: 5km/h
Speed at max tension: 2.5km/h
Max reverse pulling force: 2x35kN
Max reverse pulling speed: 5km/h
Pull at max speed: 2x20kN

Characteristics

Bull-wheel diameter: 1800mm
Groove number: 2x5
Overall dimension (length*width*height): 4600×2250×2700mm
Max conductor diameter: 40mm
Total weight: 7790kg

Main configuration

Engine: Cummins
Main motor:German Rexroth/French Leduc
Main hydraulic valves: USA Sun / Italy ATOS
Speed reducer: German Rexroth / Italy Bonfiglioli
Hydraulic pump: German Rexroth/Dnish Danfoss

Engine

Diesel: 77kw(103hp)
Electrical system: 24V
Cooling system: water

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Additional Devices

Lighting system for the trailer
Trailer for towing at max speed of 15 km/h
2 hydraulic rope/conductor clamp(extra charge)
Digital speed and meter counter
Swivel guide rope roller

Configuration

Hydraulic dynamometers
Hydraulic front stabilizer
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Hydraulic oil cooling system
Grounding connection point
Digital speed and meter counter
