Name: Transmission Line Stringing Equipment TY2x401800 Hydraulic Cable Rope Tension
Brand: HANYU
Price: 57 USD

Brand Name : HANYU

Model Number : TY2x40-1800

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD57,500-61,000/set

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Type : Hydraulic Cable Rope Tension

Max continuous tension : 2x40kN

Bull-wheel diameter : 1800mm

Max conductor diameter : 40mm

Groove number : 2x5

Total weight : 7790kg

Contact Now

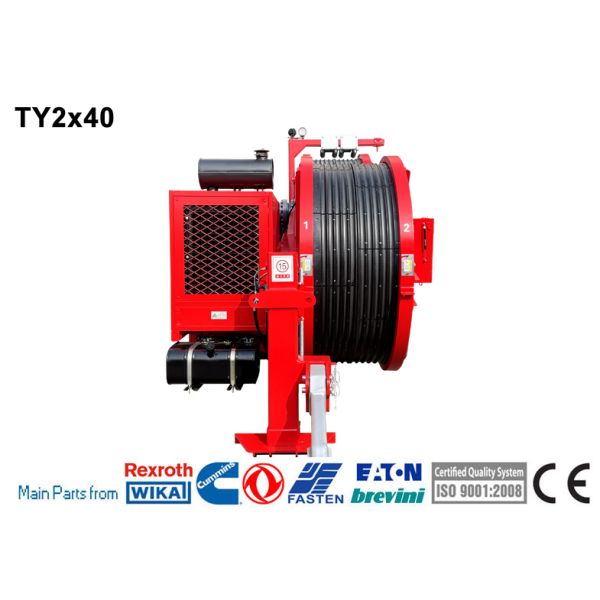

Transmission Line Stringing Equipment TY2x40-1800 Hydraulic Cable Rope Tension

TY2x40-1800

Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;

Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics	Bull-wheel diameter: 1800mm
	Groove number: 2x5
	Overall dimension (lengthwidthheight): 4600×2250×2700mm
	Max conductor diameter: 40mm
	Total weight: 7790kg

Performance	Max intermittent tension: 2x45kN
	Max continuous tension: 2x40kN
	Max speed: 5km/h
	Speed at max tension: 2.5km/h
	Max reverse pulling force: 2x35kN
	Max reverse pulling speed: 5km/h
	Pull at max speed: 2x20kN

Main configuration	Engine: Cummins
	Main motor:German Rexroth/French Leduc
	Main hydraulic valves: USA Sun / Italy ATOS
	Speed reducer: German Rexroth / Italy Bonfiglioli
	Hydraulic pump: German Rexroth/Dnish Danfoss

Additional Devices	Lighting system for the trailer
	Trailer for towing at max speed of 15 km/h
	2 hydraulic rope/conductor clamp(extra charge)
	Digital speed and meter counter
	Swivel guide rope roller

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Configuration	Hydraulic dynamometers
	Hydraulic front stabilizer
	Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
	Hydraulic oil cooling system
	Grounding connection point
	Digital speed and meter counter
