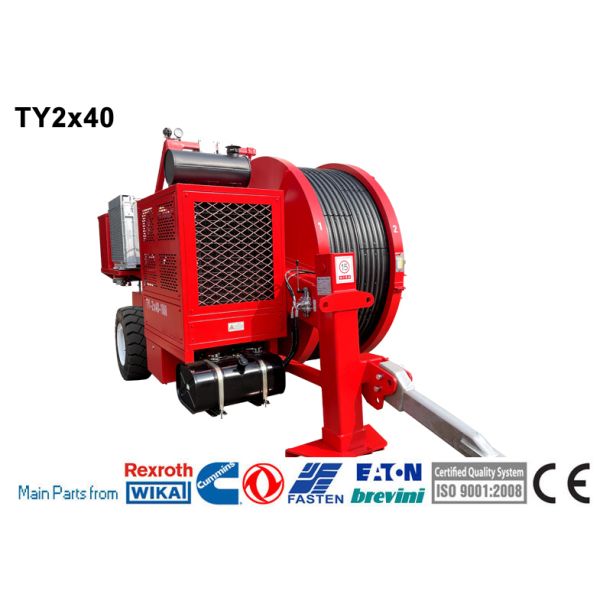

| TY2x40-1800 Hydraulic Tensioner | The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; |
| | Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains |
| | |
| Performance | Max intermittent tension: 2x45kN |
| | Max continuous tension: 2x40kN |
| | Max speed: 5km/h |
| | Speed at max tension: 2.5km/h |
| | Max reverse pulling force: 2x35kN |
| | Max reverse pulling speed: 5km/h |
| | Pull at max speed: 2x20kN |
| | |
| Characteristics | Bull-wheel diameter: 1800mm |
| | Groove number: 2x5 |
| | Overall dimension (length*width*height): 4600×2250×2700mm |
| | Max conductor diameter: 40mm |
| | Total weight: 7790kg |
| | |
| Main configuration | Engine: Cummins |
| | Main motor:German Rexroth/French Leduc |
| | Main hydraulic valves: USA Sun / Italy ATOS |
| | Speed reducer: German Rexroth / Italy Bonfiglioli |
| | Hydraulic pump: German Rexroth/Dnish Danfoss |
| | |
| Engine | Diesel: 77kw(103hp) |
| | Electrical system: 24V |
| | Cooling system: water |
| | |
| Hydraulic Transmission | The machine can realize step less speed. |
| | The machine is provided with tension presetting system. |
| | |
| Additional Devices | Lighting system for the trailer |
| | Trailer for towing at max speed of 15 km/h |
| | 2 hydraulic rope/conductor clamp(extra charge) |
| | Digital speed and meter counter |
| | Swivel guide rope roller |
| | |
| Configuration | Hydraulic dynamometers |
| | Hydraulic front stabilizer |
| | Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor |
| | Hydraulic oil cooling system |
| | Grounding connection point |
| | Digital speed and meter counter |
