Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner

Product Categories
Wuxi Hanyu power equipment co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner

  • 1
  • 2

Brand Name : HANYU

Model Number : TY2x40-1800

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD57,500-61,000/set

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Max continuous tension : 2x40kN

Type : Stringing Equipment Hydraulic Wheel Tensioner

Engine : Cummins

Main hydraulic valves : German Rexroth / Italy Bonfiglioli

Speed reducer : 2x20kN

Max reverse pulling speed : 5km/h

Contact Now

Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner

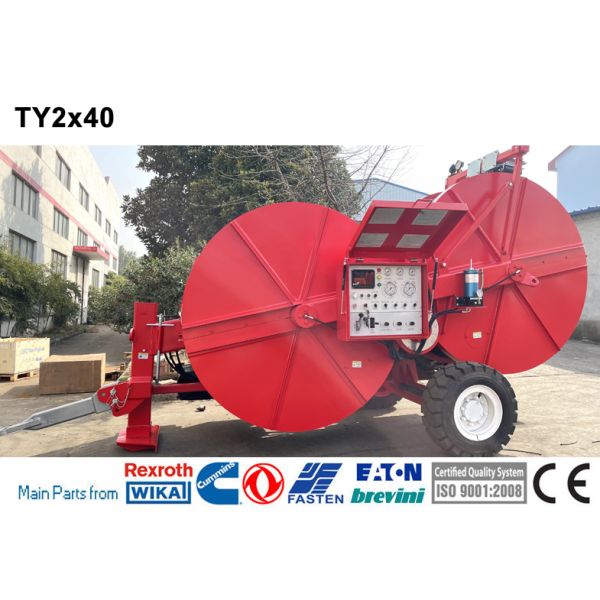

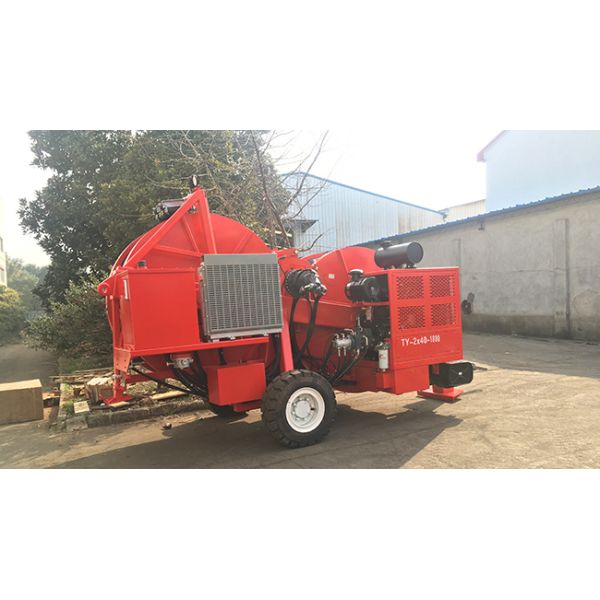

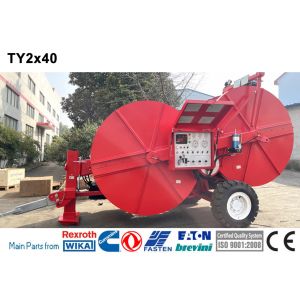

TY2x40-1800 Hydraulic Tensioner The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics Bull-wheel diameter 1800mm
Max conductor diameter 40mm
Groove number 2x5
Total weight 7790kg
Overall dimension (length*width*height) 4600×2250×2700mm

Performance Max intermittent tension 2x45kN
Max continuous tension 2x40kN
Speed at max tension 2.5km/h
Max speed 5km/h
Pull at max speed 2x20kN
Max reverse pulling force 2x35kN
Max reverse pulling speed 5km/h

Engine Diesel 77kw(103hp)
Cooling system water
Electrical system 24V

Main configuration Engine Cummins
Hydraulic pump German Rexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexroth / Italy Bonfiglioli
Main hydraulic valves USA Sun / Italy ATOS

Configuration Hydraulic oil cooling system
Grounding connection point
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Hydraulic dynamometers
Hydraulic front stabilizer
Digital speed and meter counter

Additional Devices 2 hydraulic rope/conductor clamp(extra charge)
Digital speed and meter counter
Lighting system for the trailer
Swivel guide rope roller
Trailer for towing at max speed of 15 km/h

Hydraulic Transmission The machine can realize step less speed.
The machine is provided with tension presetting system.

Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner
