Transmission Line Stringing Equipment Hydraulic Tensioner With Diesel Engine

Name: Transmission Line Stringing Equipment Hydraulic Tensioner With Diesel Engine
Brand: HANYU
Price: 57 USD

Cheap Transmission Line Stringing Equipment Hydraulic Tensioner With Diesel Engine for sale

Brand Name : HANYU

Model Number : TY2x40-1800

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD57,500-61,000/set

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Max intermittent tension : 2x45kN

Max continuous tension : 2x40kN

Max conductor diameter : 40mm

Diesel : 77kw(103hp)

Cooling system : water

Type : Hydraulic Tensioner With Diesel Engine

Contact Now

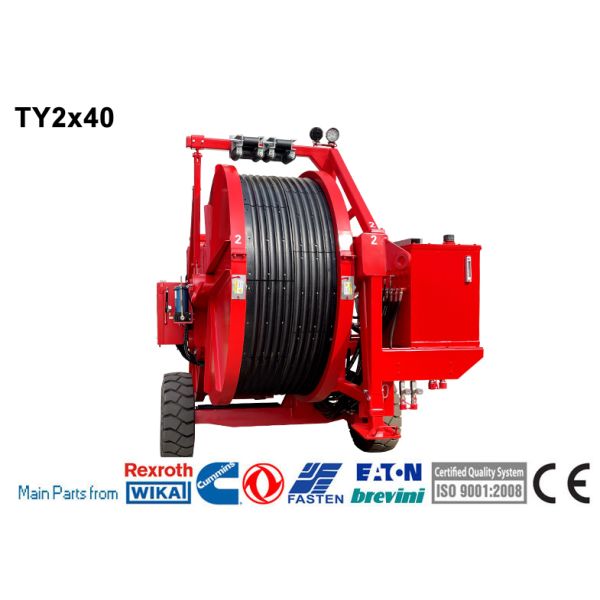

Transmission Line Stringing Equipment Hydraulic Tensioner With Diesel Engine

TY2x40-1800 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance	Max intermittent tension: 2x45kN Max continuous tension: 2x40kN Speed at max tension: 2.5km/h Max speed: 5km/h Pull at max speed: 2x20kN Max reverse pulling force: 2x35kN Max reverse pulling speed: 5km/h
Characteristics	Bull-wheel diameter: 1800mm Max conductor diameter: 40mm Groove number: 2x5 Total weight: 7790kg Overall dimension (lengthwidthheight): 4600×2250×2700mm
Engine	Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V
Main configuration	Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth / Italy Bonfiglioli Main hydraulic valves: USA Sun / Italy ATOS
Configuration	Hydraulic dynamometers Hydraulic oil cooling system Digital speed and meter counter Hydraulic front stabilizer Grounding connection point Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Hydraulic Transmission	The machine can realize step less speed. The machine is provided with tension presetting system.
Additional Devices	Lighting system for the trailer 2 hydraulic rope/conductor clamp(extra charge) Swivel guide rope roller Trailer for towing at max speed of 15 km/h Digital speed and meter counter

Transmission Line Stringing Equipment Hydraulic Tensioner With Diesel Engine

Product Tags:

hydraulic tensioner transmission line equipment

diesel engine stringing equipment

transmission line hydraulic tensioner with warranty

Transmission Line Stringing Equipment Hydraulic Tensioner With Diesel Engine Images
